The Apple Interactive Television Box or ITV, also internally identified as STB (set-top box), is a television set-top console that had been in development by Apple Computer before the launch of the Pippin platform. Some third party sources have also called this the "Pippen", though no Apple documentation refers to it as such.
The ITV was based on an Apple Quadra 605 running a customized version of Macintosh System 7.1.1 with support for MPEG-1 playback through QuickTime software and a C-Cube CL450-P160 decoder. It included processors from Brooktree, Motorola, Philips, Texas Instruments, VLSI Technology and Xilinx.
- STB1: Early prototype designed by Apple in 1993 and assembled in Austin, Texas for internal technology trials. The generic case contains a modified 25MHz Quadra 605 logic board connected to an audio/video board (part number AP2336-02) with SCART, and RF ports. The RJ45 port supported the G.703 standard for T1 and E1 networks. 100 units were produced for British Telecom.
- STB2: Interim prototype which did not go into mass production.

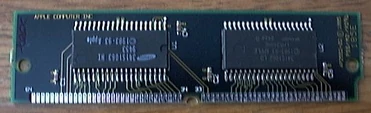

- STB3: Near-final design assembled in Ireland and assigned FCC ID: BCGM4120 for market trials in the United States. Some specimens included SCART connectors for consumer testing in Europe. v6.B and v7.0 ROMs were used. One specimen appeared to support a faster 33MHz 68LC040 processor. Unneeded components, such as the floppy disk controller, were eliminated to streamline cost. 2,800 units were produced for British Telecom. Apple also bid to provide units to Bell Atlantic.
After internal testing at Apple in 1993, British Telecom conducted a technology trial of model STB1 in March 1994 with 60 employees in the Suffolk town of Kesgrave. Testing in Europe was carried out in partnership with Belgacom, British Telecom (BT), and Telia Company. Market trials with model STB3 began in Farsta, Sweden in May 1995 and expanded to 2,500 households near London in the following autumn.
The UK version of model STB3 was branded by BT as the Voyager 2000 Interactive TV System and was deployed in Colchester and Ipswich. The year-long trial included 8 schools and 4 public access points. Services included on-demand television, educational content, games, online shopping and banking. The user interface and video animation were designed by Dot New Media.
Apple and Bell Atlantic conducted trials in six states in the United States. Network functionality was provided by Oracle Media Net, which would download a "stack", a multimedia runtime application that was authored with Oracle Media Objects. Interactive educational programming was provided by The Lightspan Partnership. For units tested in the Washington, D.C. area, MPEG-1 content was streamed at 1.5 Mbps over an asymmetric digital subscriber line, a technology that was being developed by Bell Atlantic subsidiary Bellcore. Bell Atlantic ran their service trial on four nCube servers, which could each store up to 10,000 feature-length films.
Apple unveiled the set-top box at the multimedia pavilion of the NAB Show at Las Vegas in April 1995. At the NCTA Cable Show in May 1995, Apple outlined its milestones for market trials of its interactive television technology.
“We believe ITV has the potential to be the low-cost portal to the information superhighway.”— Rick Shriner
Vice President, Apple Core Technologies
The rare British Telecom GameCart has a Mini-DIN-8 serial port that would allow content to be downloaded from a Voyager 2000 Interactive TV System (BT's version of the ITV) to a Super NES console. Games available for digital download during British Telecom's Ipswich test included Super Mario All Stars and F-Zero.

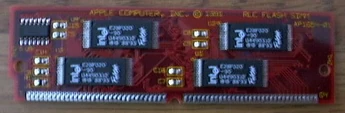

With interactive services no longer available, default installations of ITVs are no longer fully functional. Set-top boxes containing a red flash ROM SIMM are capable of booting Mac OS 7.6 to 8.1, but then video is not displayed due to lack of compatible video drivers. File sharing can be enabled and the set-top box will identify itself as a Macintosh 470 Series, Machine ID: 89.
